Optima AERO

Bridging The Distance

Wireless Router/Gateway

Extend Your Reach

AERO sports secure VPN connections. That makes it perfect for mission critical communications.

Now you can link-up all of your remote sites. Do it while avoiding those complex IP addressing headaches.

With Optima’s flexible VPN bridging mode, you create one big network.

It connects you everywhere you got cellular coverage.

Imagine going further.

Simply deploy AERO.

And extend your reach.

With Your Remote Sites In Mind

Rugged Design

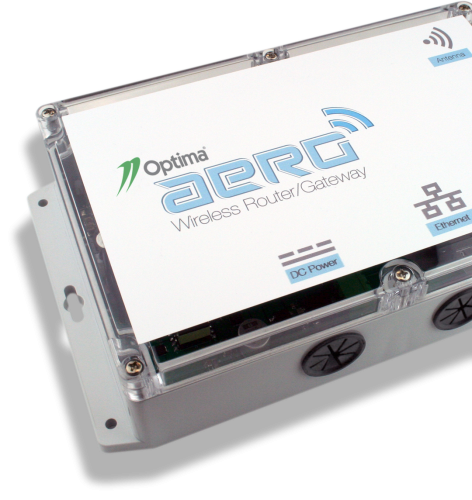

The rugged design of the DC powered model makes AERO the perfect solution.

Use it for remote telecom and telemetry based applications. It’s ultra wide +/-20 to +/-60V DC power input range works with all backup battery systems.

Protect mission critical back-hauls, mobile hot spots, remote Internet access and cloud-based applications. Simple and cost effective.

Getting AERO Up And Running

Not Rocket Science

AERO simplifies connecting a remote site to the corporate network. It reduces the required steps to a minimum. Connecting far flung sites splits into two parts: a server part, and a client part.

AERO Server

The AERO server installs as software running on a PC, VM or container on the corporate network side. This instance runs behind a firewall. It either has a direct connection to the cellular/mobile network or through the Internet.

AERO Client

The AERO client is a physical device which installs at one or more remote locations. A cellular USB modem establishes a link to the mobile network/Internet. Ultimately, this link terminates at the corporate network.

With both parts up and running, the AERO client establishes a VPN tunnel. This tunnel over the mobile grid bridges the remote to the corporate network. The bridge established by the AERO operates at the link layer – forwarding all traffic.

This allows devices in the corporate network and the remote sites to talk to each other. No need to change the routing or configuration setup.

Build Your Mobile Access Network

Access All Your Sites

AERO offers a clean and easy path to connect all your remote sites.

Build the network you need. Quickly and efficiently. It works with your local mobile technology.

And it offers secure access to even the most remote location. Get robust operation. Especially with less than stellar cellular performance.

Optima offers end-to-end solutions to integrate all your networks. Launch with a handful of remote sites, then keep on growing.

AERO. Ready for the future.

Technical Specifications

PHYSICAL (DC Model)

Width	147.5mm (5.80″)
Height	57.0mm (2.24″)
Depth	251.8mm (9.91″)
Weight	N/A
Mounting	Supports wall and cabinet mounting

PHYSICAL (AC Model)

Width	110mm (4.33″)
Height	48.5mm (1.91″)
Depth	69.5mm (2.74″)
Weight	N/A
Mounting	Supports wall and cabinet mounting

Power (DC Model)

Input	±20 to ±60 VDC
Power Consumption	Less than 5 Watts
Connector	2x 3 position pluggable screw terminals

Power (AC Model)

Input	100-240 VAC, 50/60 Hz
Power Consumption	Less than 5 Watts
Connector	North American style power plug (other country plug styles available upon request)

Environmental

Temperature	Operating: 0° to 40° Celsius (32° to 104° Fahrenheit)
	Non-Operating: -25° to 70° Celsius (-13° to 158° Fahrenheit)
Humidity	Operating: 30% to 80% relative humidity (non-condensing)
	Non-Operating: 30% to 95% relative humidity (non-condensing)

Interfaces

Power	DC Model: 2 x 3 position pluggable screw terminals for ±20 to 60 VDC power
	AC Model: AC Connector
LAN	1 x RJ45 for 100BaseT/GbE LAN port
USB	1 x USB type A
Antenna	1 x SMA(F)
	NOTE: DC enclosure ships with one circular opening for an SMA female bulkhead antenna connector (the SMA connector is part of the optional Antenna Kit 1009-K010001A and must be ordered separately. See ordering information for details).

Security

Library	OpenSSL – robust, commercial-grade SSL library
Certificates	Certificate based public key encryption
Cipher	256bit AES
Firewall	stateless and stateful packet filtering

Ordering / Documentation

Part Numbers

1009-A010001B	Optima AERO DC Version ±20 to ±60 VDC (clear lid case)
1009-A010002A	Optima AERO AC AC Version 100 to 240 VAC / 50 to 60 Hz
1009-K010001A	Antenna Kit 1 x 2.5dBi antenna 850-2100Mhz RG174 cable SMA(M) terminated 3 m / 10 ft 1 x SMA(F) to CRC9 pigtail cable 15 cm / 6 in 1 x SMA(F) to TS9 pigtail cable 15 cm / 6 in

Specifications subject to change without prior written notice. All referenced trade names are either trademarks or registered trademarks of their respective companies.
